ADVANCE ELECTRIC CO.,INC.

HIBV series backpressure control valves

The HIBV series of control valves provide outstanding pressure
stability on the upstream.
The upstream pressure is managed by the pilot air pressure
supplied to the HIBV.

HIBV series backpressure control valves
Features
Controls upstream pressure
High accuracy and quick response
Main Use:
For stabilizing chemical circulation pressure/
flow rate
All fluoropolymer wetted parts
Specifications
Media Pressure : Inlet/Outlet 0.3MPa
Media Temperature : 10 to 90℃
Valve Footprint : □65, ○90, ○130
Connection Size : 1/4", 3/8", 1/2", 3/4", 1"
Recommended Flow Range : From 0.4L/min to
45L/min (refer to each
HIBV size for actual flow
range)
Click here for details
HIBV-065CB*-131P

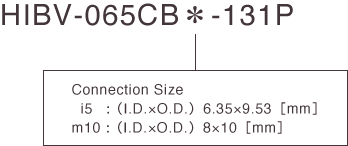

Model Selection Table

HIBV-065CB*-131P

Specifications

Orifice Size [mm] φ9.6 equivalency
Connection Size [mm] 6.35×9.53 8×10
Recommended Flow Range
[L/min]H2O
2 ~ 10
Media Pressure Inlet
Pressure
[MPa]
0 ~ 0.5
Outlet
Pressure
[MPa]
0 ~ 0.5
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Temperature [℃] 10 ~ 90
Ambient Temperature [℃] 0 ~ 40
Pneumatic Pressure [MPa] 0.1 ~ 0.3
Wetted Material PTFE

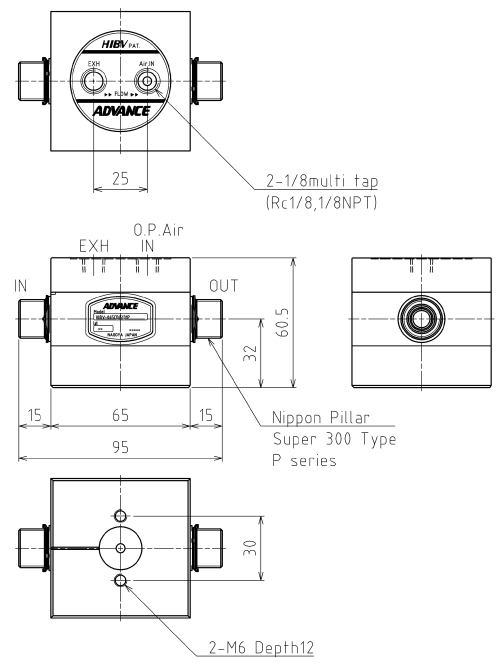

Dimensional Drawing(unit : mm)

HIBV-065CB*-131P

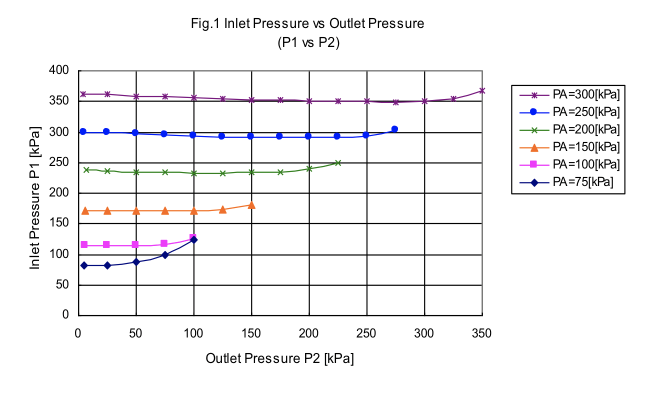

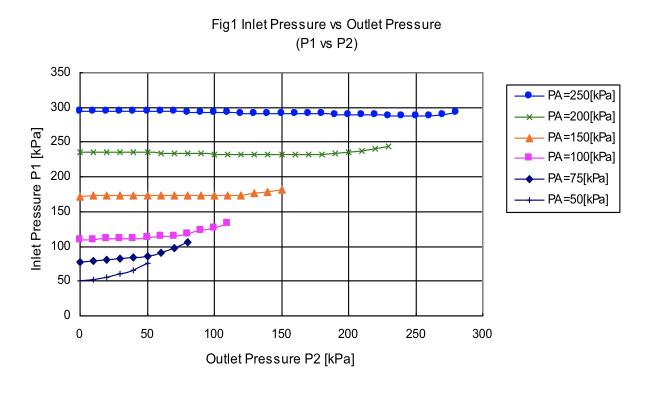

  • Fig. 1    Inlet Pressure vs Outlet Pressure

    Measurement Method :
    3mm fixed orifice is installed on the upper stream of test unit.
    Upstream Pressure of fixed orifice : 500kPa

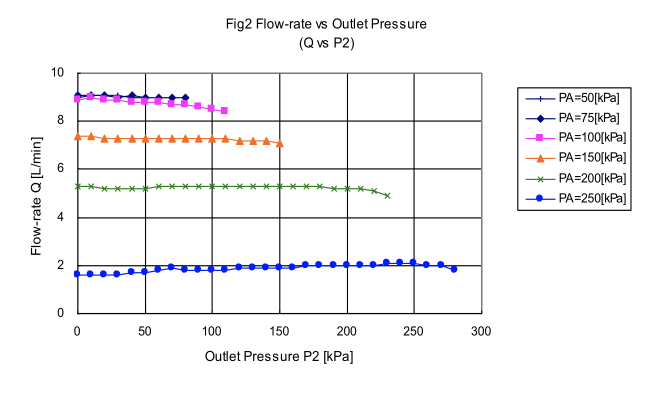

  • Fig. 2    Flow-rate vs Outlet Pressure

    Measurement Method :
    3mm fixed orifice is installed on the upper stream of test unit.
    Upstream Pressure of fixed orifice : 500kPa

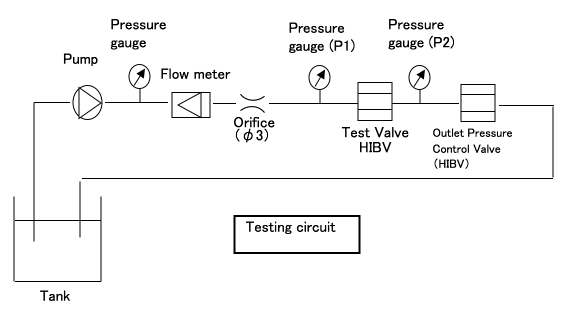

  • Fig. 1,2    Testing Circuit

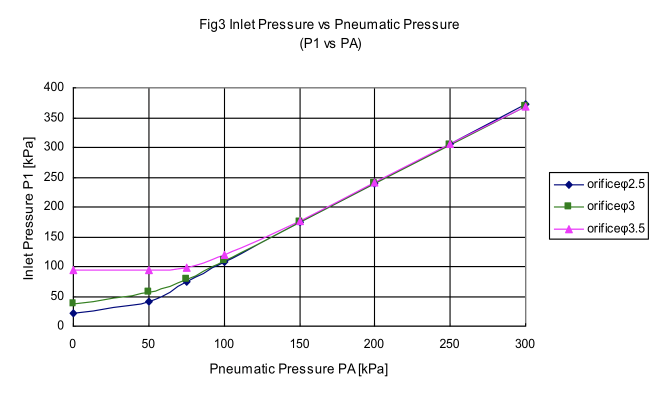

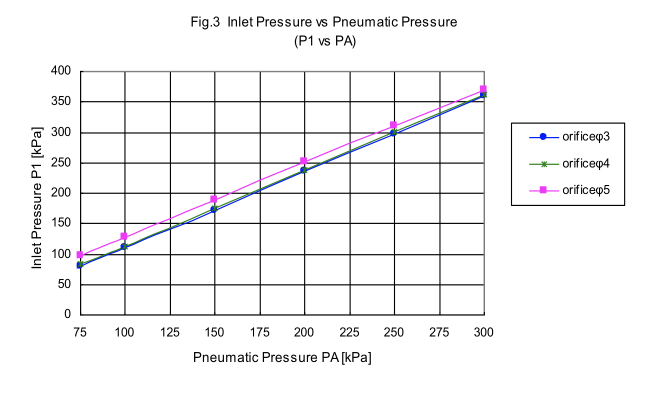

  • Fig. 3    Inlet Pressure vs Pneumatic Pressure

    Measurement Method :
    Upstream Pressure of fixed orifice : 500kPa
    Downstream open

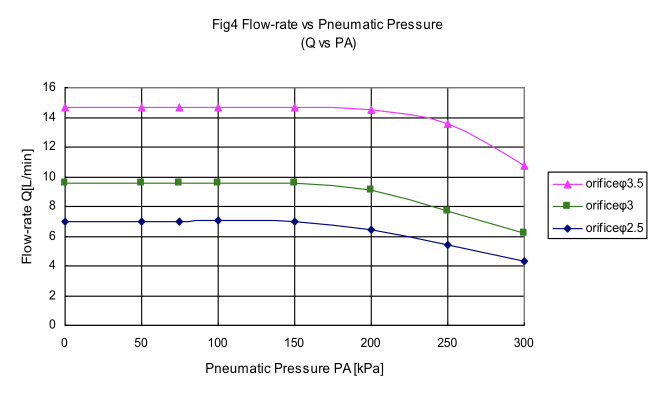

  • Fig. 4    Flow-rate vs Pneumatic Pressure

    Measurement Method :
    Upstream Pressure of fixed orifice : 500kPa
    Downstream open

  • Fig. 5    Inlet Pressure vs Flow-rate

    Measurement Method :
    3mm fixed orifice is installed on the upper stream of test unit.
    Downstream open

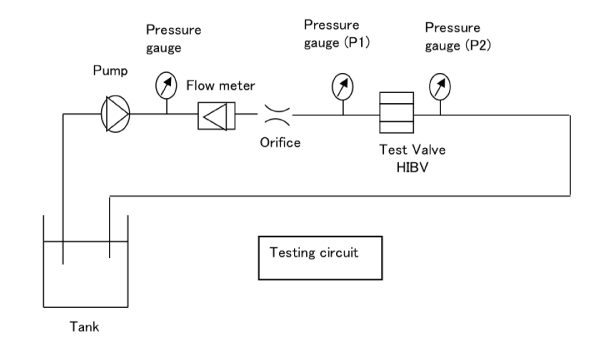

  • Fig. 3,4,5    Testing Circuit

HIBV-090CB*-131P

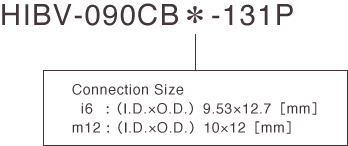

Model Selection Table

HIBV-090CB*-131P

Specifications

Orifice Size [mm] φ15 equivalency
Connection Size [mm] 9.53×12.7 10×12
Recommended Flow Range
[L/min]H2O
5 ~ 20
Media Pressure Inlet
Pressure
[MPa]
0 ~ 0.5
Outlet
Pressure
[MPa]
0 ~ 0.5
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Temperature [℃] 10 ~ 90
Ambient Temperature [℃] 0 ~ 40
Pneumatic Pressure [MPa] 0.1 ~ 0.3
Wetted Material PTFE

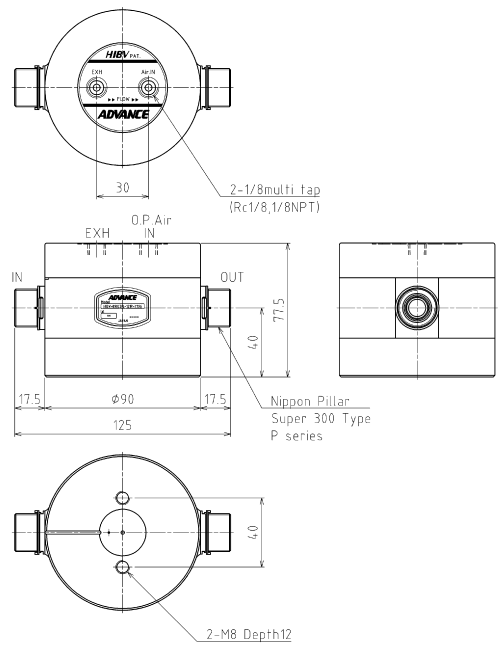

Dimensional Drawing(unit : mm)

HIBV-090CB*-131P

  • Fig. 1    Inlet Pressure vs Outlet Pressure

    Measurement Method :
    4mm fixed orifice is installed on the upper stream of test unit.
    Upstream Pressure of fixed orifice : 500kPa

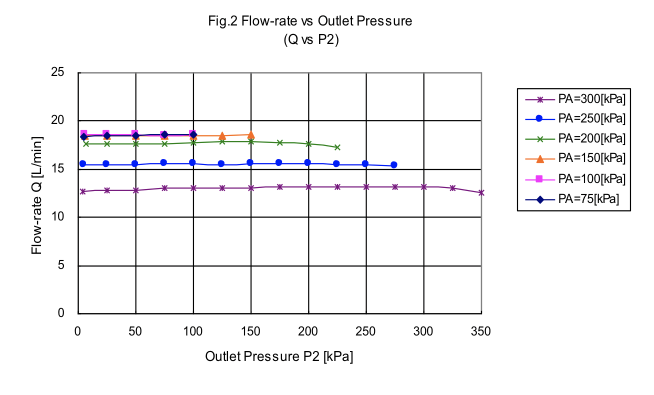

  • Fig. 2    Flow-rate vs Outlet Pressure

    Measurement Method :
    4mm fixed orifice is installed on the upper stream of test unit.
    Upstream Pressure of fixed orifice : 500kPa

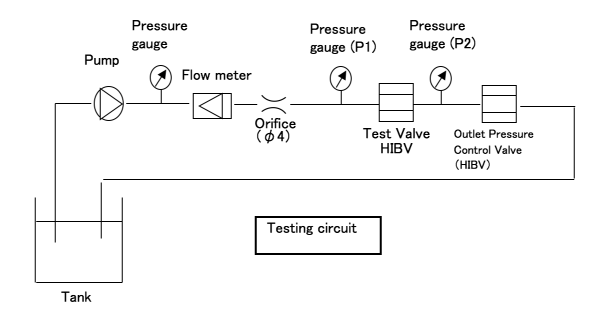

  • Fig. 1,2    Testing Circuit

  • Fig. 3    Inlet Pressure vs Pneumatic Pressure

    Measurement Method :
    Upstream Pressure of fixed orifice : 500kPa
    Downstream open

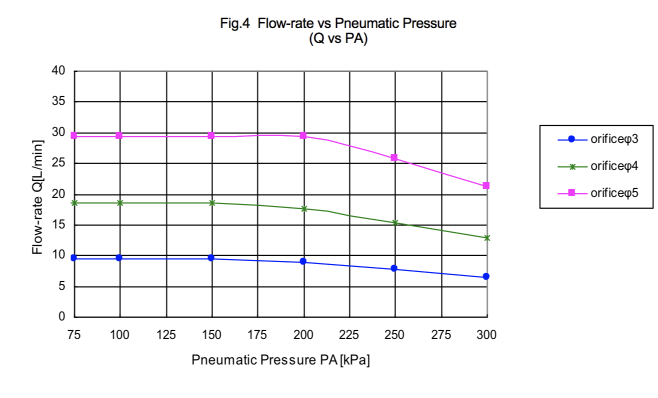

  • Fig. 4    Flow-rate vs Pneumatic Pressure

    Measurement Method :
    Upstream Pressure of fixed orifice : 500kPa
    Downstream open

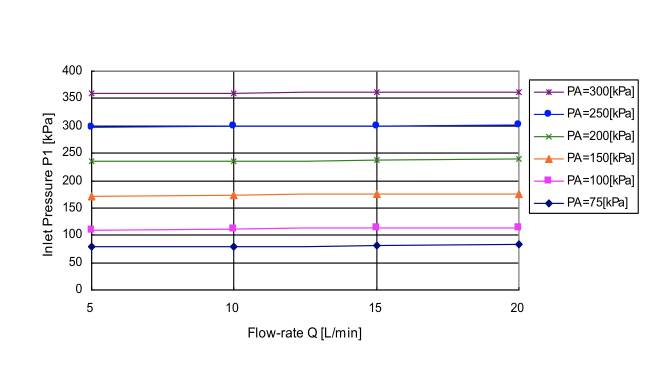

  • Fig. 5    Inlet Pressure vs Flow-rate

    Measurement Method :
    4mm fixed orifice is installed on the upper stream of test unit.
    Downstream open

  • Fig. 3,4,5    Testing Circuit

HIBV-130CB*-131P

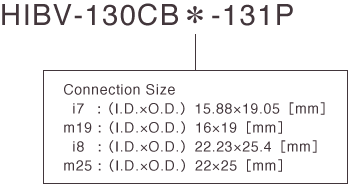

Model Selection Table

HIBV-130CB*-131P

Specifications

Orifice Size [mm] φ15 equivalency
Connection Size [mm] 15.88×19.05 16×19 22.23×25.4 22×25
Recommended Flow Range
[L/min]H2O
5 ~ 55
Media Pressure Inlet
Pressure
[MPa]
0 ~ 0.3
Outlet
Pressure
[MPa]
0 ~ 0.3
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Temperature [℃] 10 ~ 90
Ambient Temperature [℃] 0 ~ 40
Pneumatic Pressure [MPa] 0.1 ~ 0.25
Wetted Material PTFE

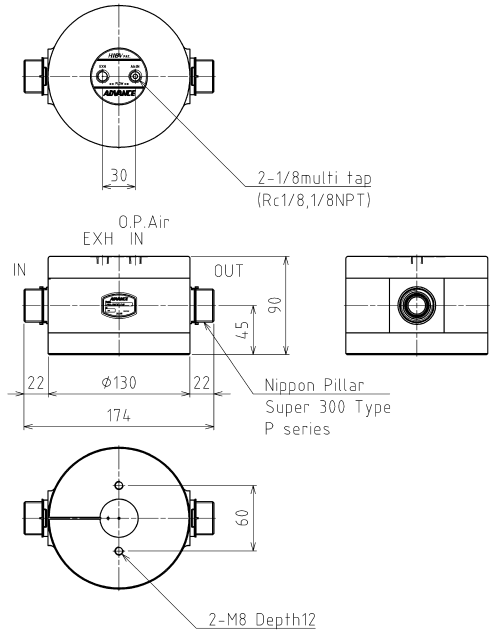

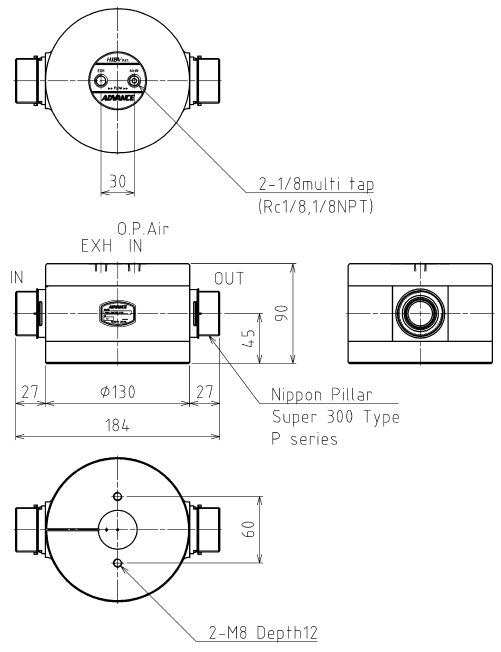

Dimensional Drawing(unit : mm)

HIBV-130CB*-131P    (Connection Size : 15.88×19.05, 16×19)

HIBV-130CB*-131P    (Connection Size : 22.23×25.4, 22×25)

HIBV-130CB*-131P

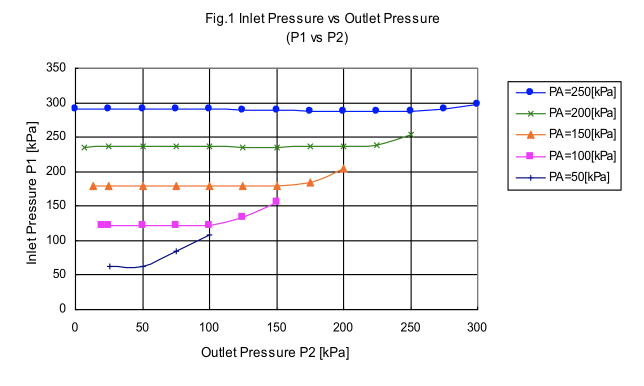

  • Fig. 1    Inlet Pressure vs Outlet Pressure

    Measurement Method :
    6mm fixed orifice is installed on the upper stream of test unit.
    Upstream Pressure of fixed orifice : 500kPa

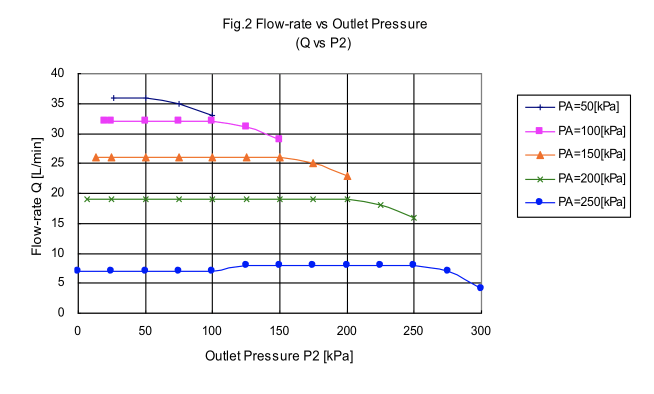

  • Fig. 2    Flow-rate vs Outlet Pressure

    Measurement Method :
    6mm fixed orifice is installed on the upper stream of test unit.
    Upstream Pressure of fixed orifice : 500kPa

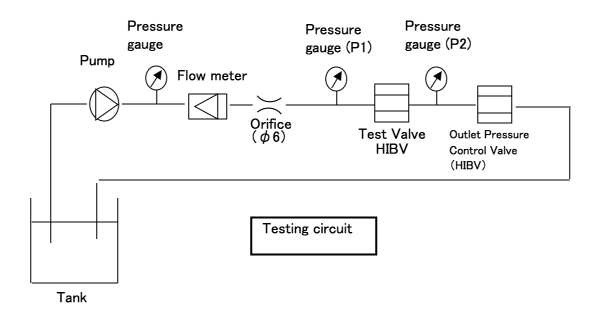

  • Fig. 1,2    Testing Circuit

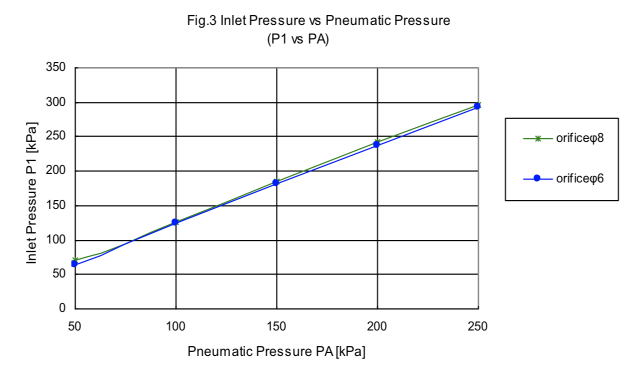

  • Fig. 3    Inlet Pressure vs Pneumatic Pressure

    Measurement Method :
    Upstream Pressure of fixed orifice : 500kPa
    Downstream open

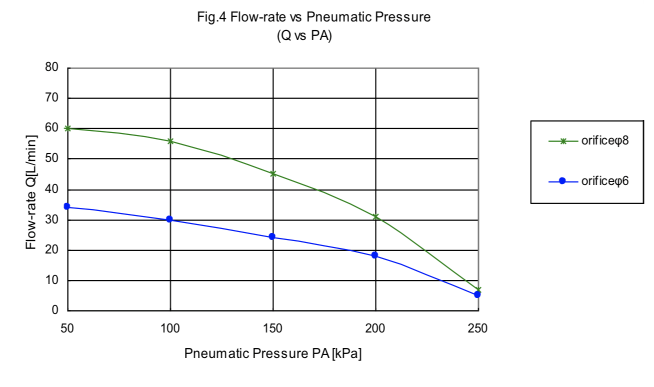

  • Fig. 4    Flow-rate vs Pneumatic Pressure

    Measurement Method :
    Upstream Pressure of fixed orifice : 500kPa
    Downstream open

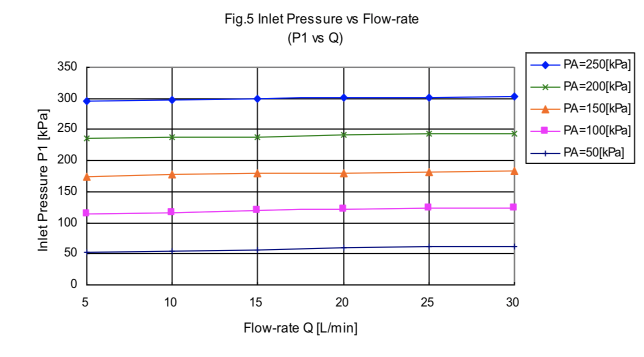

  • Fig. 5    Inlet Pressure vs Flow-rate

    Measurement Method :
    6mm fixed orifice is installed on the upper stream of test unit.
    Downstream open

  • Fig. 3,4,5    Testing Circuit
