ADVANCE ELECTRIC CO.,INC.

MX series inline mixers

The MX series effectively mixes fluids by executing the operations of
division of flow, radial mixing, and flow reversal.

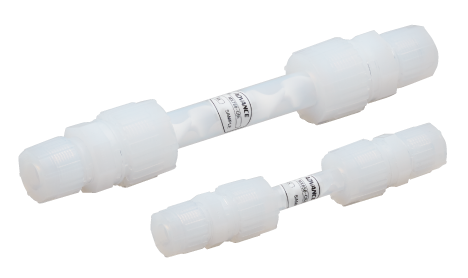

MX series inline mixers
Features
Mixing is possible by transferring fluid without
the use of an agitator.
MX breaks down air bubbles present in the liquid,
which results in the gas surface area increasing,
making the gas easier to dissolve into the liquid.
Nippon Pillar S-300 connection
Specifications
Media Pressure : 0 to 0.5MPa
Media Temperature : 10 to 200℃
Connection Size : 1/4", 3/8", 1/2", 3/4", 1"
Wetted materials : PTFE, PFA

Mixing Principle

  • Division of flow

    Fluids are bisected as they
    pass each element.
    The division number is N=2n
    where n is the number of elements

  • Flow reversal

    As fluids goes along the curves of
    each element they are rotated
    radially toward the pipe wall,
    or rotated back to the center.

  • Radial mixing

    As fluids pass each element
    they change their direction to the right or
    to the left, and the force of inertia
    that suddenly occurs creates
    a strong flow reversal motion that results
    in stirring and mixing of the fluids.

Click here for details
MX**6-CB*

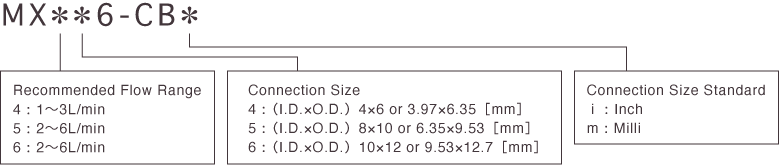

Model Selection Table

MX**6-CB*

Specifications

Mixing Section Size [mm] 10×12
Recommended Flow Range
[L/min]
1 ~ 3 2 ~ 6
Connection Size [mm] 3.97×6.35
4×6
6.35×9.53
8×10
9.53×12.7
10×12
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure [MPa] 0 ~ 0.5
Media Temperature [℃] 10 ~ 200
Ambient Temperature [℃] 10 ~ 60
Wetted Material PTFE / PFA

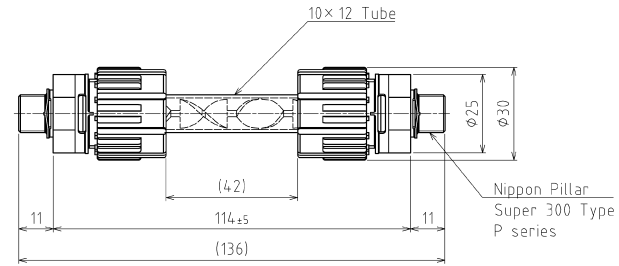

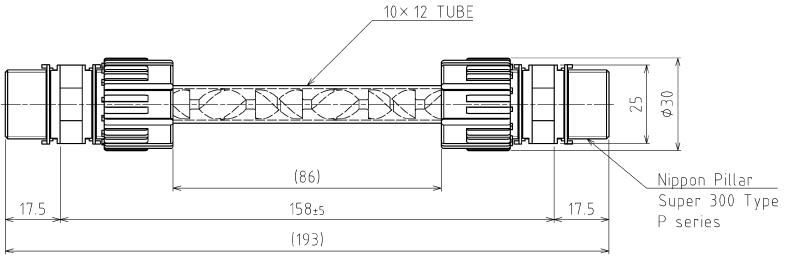

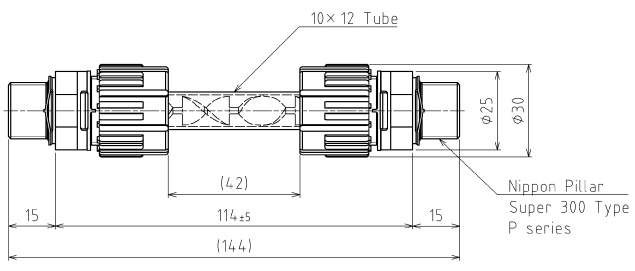

Dimensional Drawing

  • MX646-CBi6

    MX646-CBi6
  • MX656-CBi6

    MX656-CBi6
  • MX666-CBi6

    MX666-CBi6
MX7*6-CB*

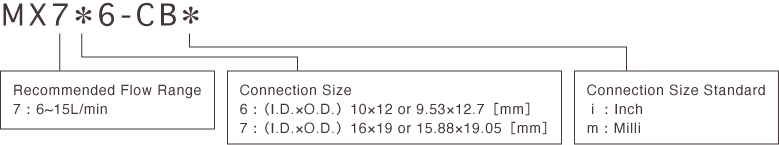

Model Selection Table

MX7*6-CB*

Specifications

Mixing Section Size [mm] 16×19
Recommended Flow Range
[L/min]
6 ~ 15
Connection Size [mm] 9.53×12.7
10×12
15.88×19.05
16×19
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure [MPa] 0 ~ 0.5
Media Temperature [℃] 10 ~ 200
Ambient Temperature [℃] 10 ~ 60
Wetted Material PTFE / PFA

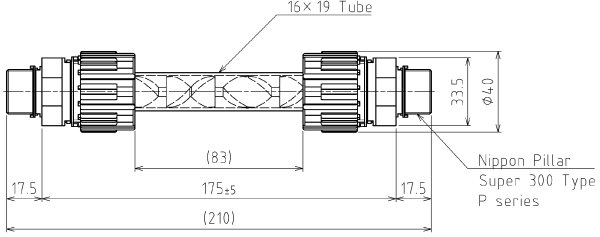

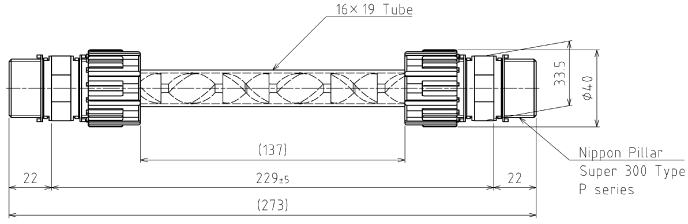

Dimensional Drawing(unit : mm)

  • MX766-CBi

    MX766-CBi
  • MX776-CBi

    MX776-CBi
MX8*6-CB*

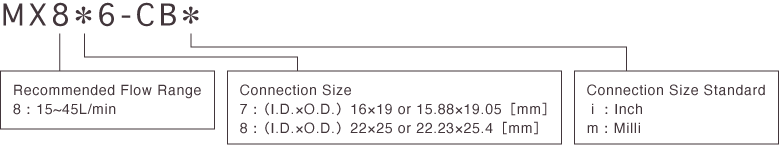

Model Selection Table

MX8*6-CB*

Specifications

Mixing Section Size [mm] 22×25
Recommended Flow Range
[L/min]
15 ~ 45
Connection Size [mm] 15.88×19.05
16×19
22.23×25.4
22×25
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure [MPa] 0 ~ 0.5
Media Temperature [℃] 10 ~ 200
Ambient Temperature [℃] 10 ~ 60
Wetted Material PTFE / PFA

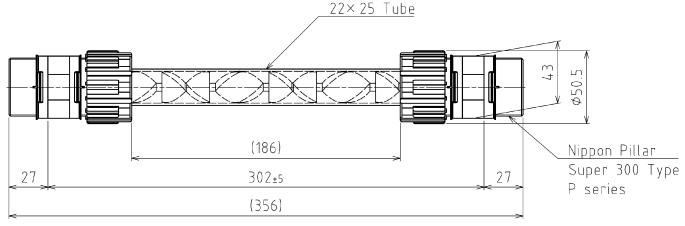

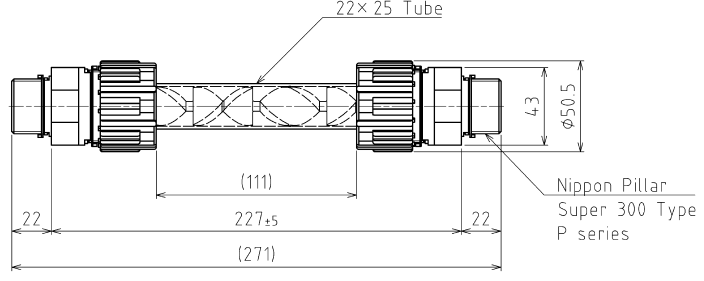

Dimensional Drawing(unit : mm)

  • MX876-CBi

    MX766-CBi
  • MX886-CBi

    MX776-CBi
