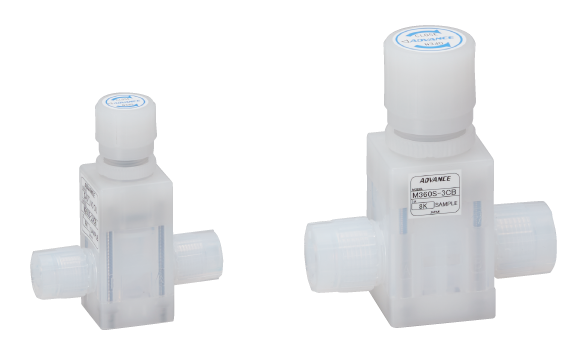

New SAV series manual (multi-turn) shutoff valves.

The NEW SAV series multi-turn valve opens and
closes by manually turning the handle.

New SAV series manual (multi-turn) shutoff valves.
Features
Multi-turn actuated
All fluoropolymer wetted parts
Injection molded body and actuator
Manifold configurations available
Main Use: For supply and drain of chemical and DI water
Bidirectional pressure rated (0.5MPa)
Specifications
Media Pressure : Inlet/Outlet 0.5MPa
Media Temperature : 10 to 100℃
Valve Footprint : □25, □35, □45, □60
Connection Size : 1/4", 3/8", 1/2", 3/4", 1"
Click here for details
M26*S-*CB

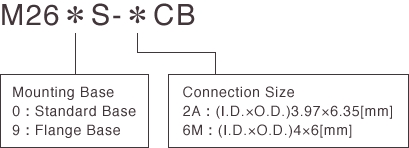

Model Selection Table

M26*S-*CB

Specifications

Orifice Size [mm] φ4
Connection Size [mm] 3.97×6.35 4×6
Cv 0.32
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure A→B [MPa] 0 ~ 0.5
B→A [MPa] 0 ~ 0.5
Media Pressure [℃] 10 ~ 100
Ambient Temperature [℃] 10 ~ 60
Wetted Material Diaphragm PTFE
Valve Body PFA

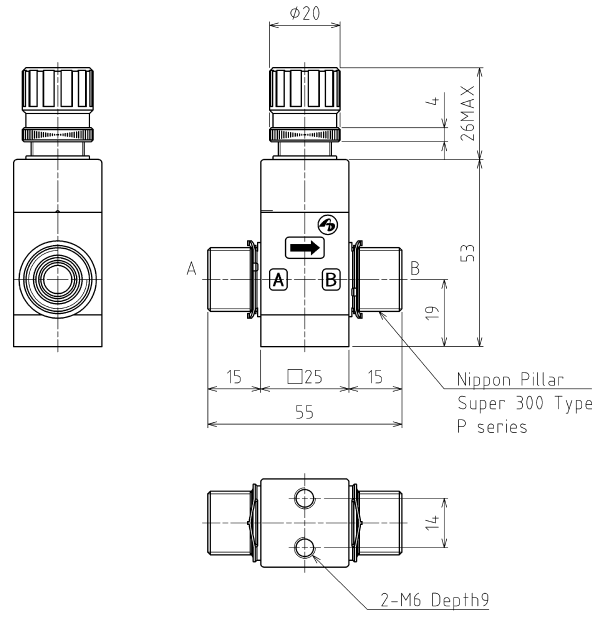

Dimensional Drawing(unit : mm)

M26*S-*CB

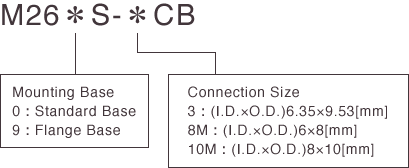

Model Selection Table

M26*S-*CB

Specifications

Orifice Size [mm] φ6
Connection Size [mm] 6×8 6.35×9.53 8×10
Cv 0.72 0.73 0.76
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure A→B [MPa] 0 ~ 0.5
B→A [MPa] 0 ~ 0.5
Media Temperature [℃] 10 ~ 100
Ambient Temperature [℃] 10 ~ 60
Wetted Material Diaphragm PTFE
Valve Body PFA

Dimensional Drawing(unit : mm)

M36*S-*CB

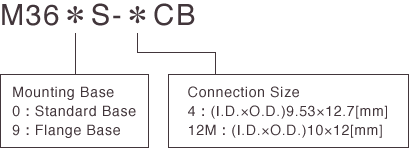

Model Selection Table

M36*S-*CB

Specifications

Orifice Size [mm] φ10
Connection Size [mm] 9.53×12.7 10×12
Cv 2.0
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure A→B [MPa] 0 ~ 0.5
B→A [MPa] 0 ~ 0.5
Media Temperature [℃] 10 ~ 100
Ambient Temperature [℃] 10 ~ 60
Wetted Material Diaphragm PTFE
Valve Body PFA

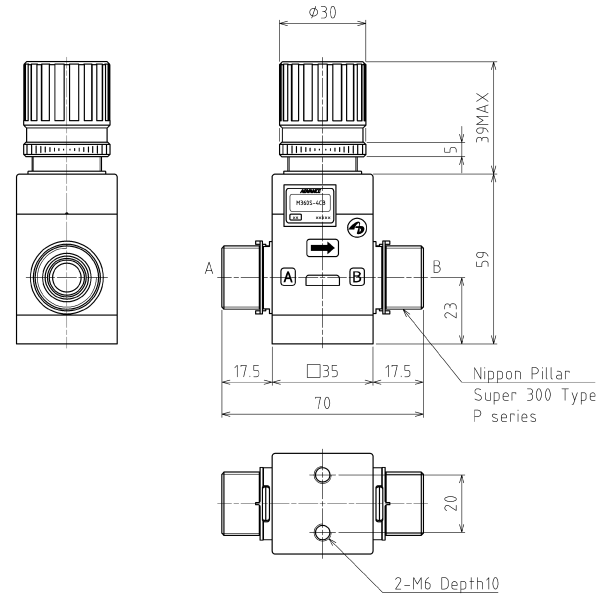

Dimensional Drawing(unit : mm)

M46*S-*CB

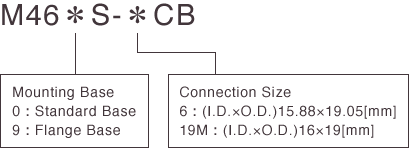

Model Selection Table

M46*S-*CB

Specifications

Orifice Size [mm] φ16
Connection Size [mm] 15.88×19.05 16×19
Cv 5.1
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure A→B [MPa] 0 ~ 0.5
B→A [MPa] 0 ~ 0.5
Media Temperature [℃] 10 ~ 100
Ambient Temperature [℃] 10 ~ 60
Wetted Material Diaphragm PTFE
Valve Body PFA

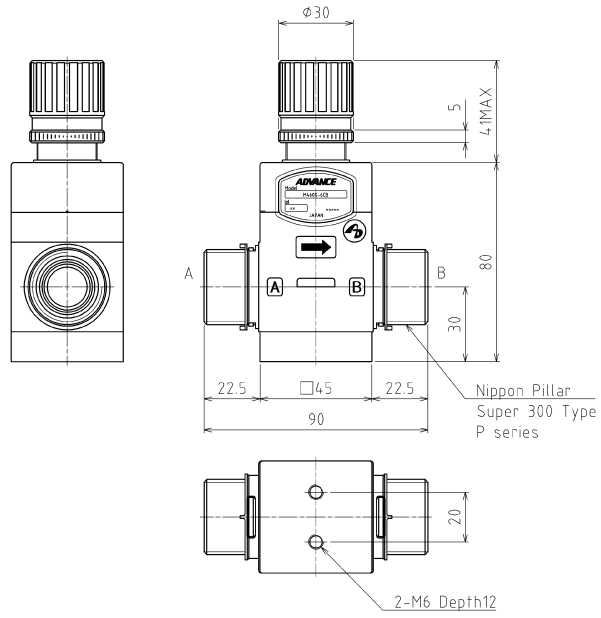

Dimensional Drawing(unit : mm)

M66*S-*CB

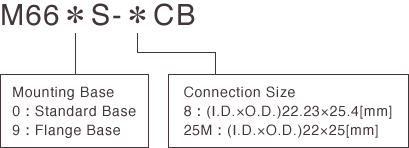

Model Selection Table

M66*S-*CB

Specifications

Orifice Size [mm] φ22
Connection Size [mm] 22.23×25.4 22×25
Cv 9.6
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure A→B [MPa] 0 ~ 0.5
B→A [MPa] 0 ~ 0.5
Media Temperature [℃] 10 ~ 100
Ambient Temperature [℃] 10 ~ 60
Wetted Material Diaphragm PTFE
Valve Body PFA

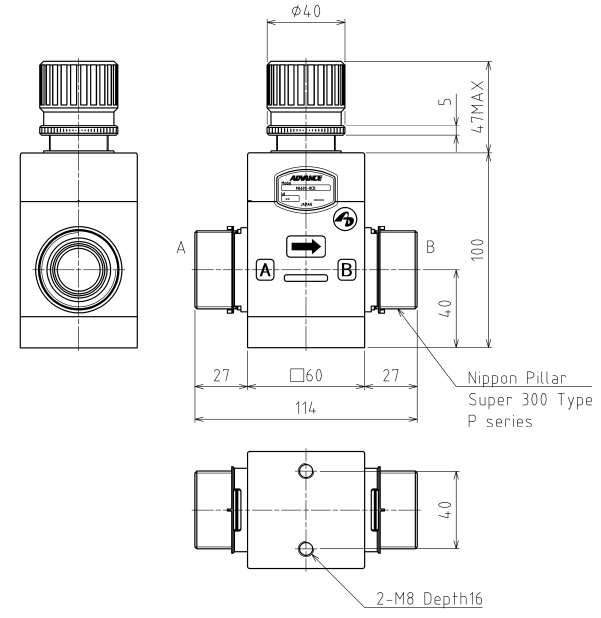

Dimensional Drawing(unit : mm)
