New SAV series manual (toggle) shutoff valves.

The NEW SAV series toggle valve opens and
closes by switching the lever back and forth.

New SAV series manual (toggle) shutoff valves.
Features
Toggle actuated
Wetted parts are made of corrosion-resistant plastic
Injection molded body and actuator
Manifold configurations available
Main Use: For supply and drain of chemical and DI water
Bidirectional pressure rated (0.5MPa)
Specifications
Media Pressure : Inlet/Outlet 0.5MPa
Media Temperature : 10 to 100℃
Valve Footprint : □25, □35, □45, □60
Connection Size : 1/4", 3/8", 1/2", 3/4", 1"
Click here for details
T26＊S-＊CB

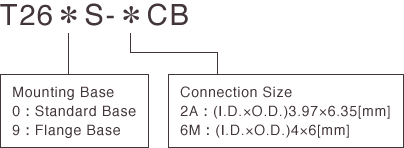

Model Selection Table

T26＊S-＊CB

Specifications

Orifice Size [mm] φ4
Connection Size [mm] 3.97×6.35 4×6
Cv 0.32
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure A→B [MPa] 0 ～ 0.5
B→A [MPa] 0 ～ 0.5
Media Temperature [℃] 10 ～ 100
Ambient Temperature [℃] 10 ～ 60
Wetted Material Diaphragm Corrosion-resistant plastic
Valve Body Corrosion-resistant plastic

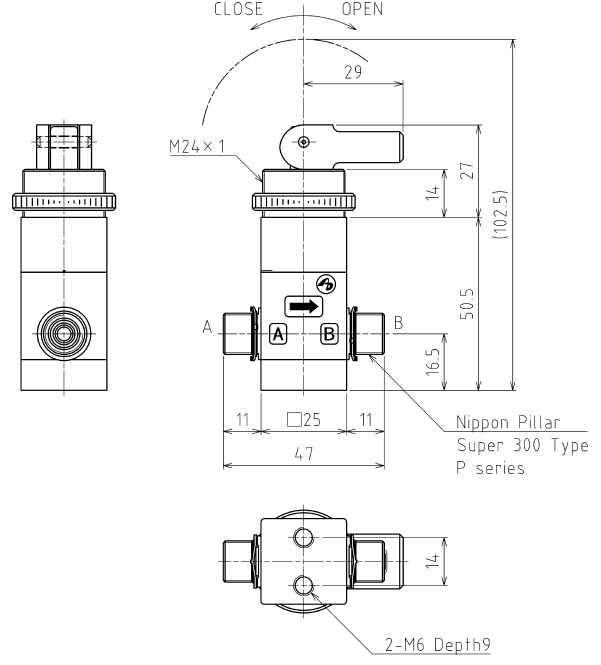

Dimensional Drawing（unit : mm）

T26＊S-＊CB

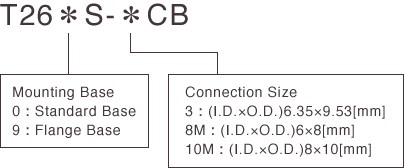

Model Selection Table

T26＊S-＊CB

Specifications

Orifice Size [mm] φ6
Connection Size [mm] 6×8 6.35×9.53 8×10
Cv 0.72 0.73 0.76
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure A→B [MPa] 0 ～ 0.5
B→A [MPa] 0 ～ 0.5
Media Temperature [℃] 10 ～ 100
Ambient Temperature [℃] 10 ～ 60
Wetted Material Diaphragm Corrosion-resistant plastic
Valve Body Corrosion-resistant plastic

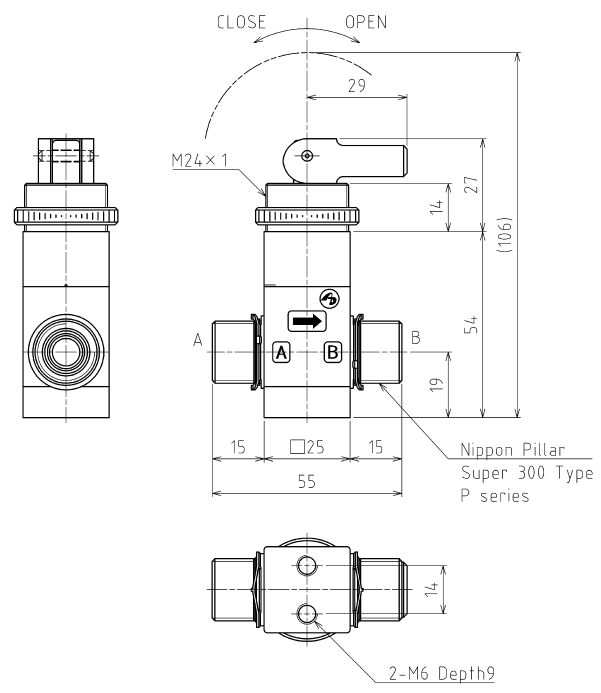

Dimensional Drawing（unit : mm）

T36＊S-＊CB

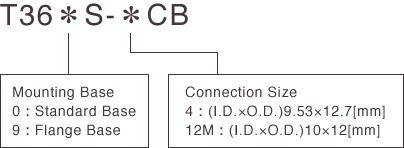

Model Selection Table

T36＊S-＊CB

Specifications

Orifice Size [mm] φ10
Connection Size [mm] 9.53×12.7 10×12
Cv 2.0
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure A→B [MPa] 0 ～ 0.5
B→A [MPa] 0 ～ 0.5
Media Temperature [℃] 10 ～ 100
Ambient Temperature [℃] 10 ～ 60
Wetted Material Diaphragm Corrosion-resistant plastic
Valve Body Corrosion-resistant plastic

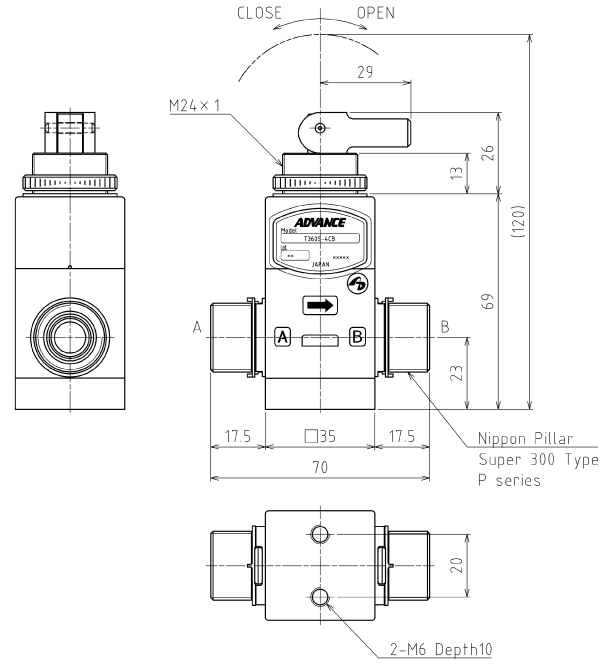

Dimensional Drawing（unit : mm）

T46＊S-＊CB

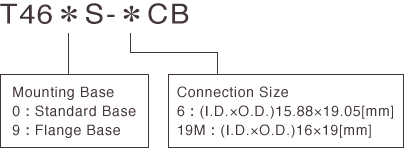

Model Selection Table

T46＊S-＊CB

Specifications

Orifice Size [mm] φ16
Connection Size [mm] 15.88×19.05 16×19
Cv 5.1
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure A→B [MPa] 0 ～ 0.5
B→A [MPa] 0 ～ 0.5
Media Temperature [℃] 10 ～ 100
Ambient Temperature [℃] 10 ～ 60
Wetted Material Diaphragm Corrosion-resistant plastic
Valve Body Corrosion-resistant plastic

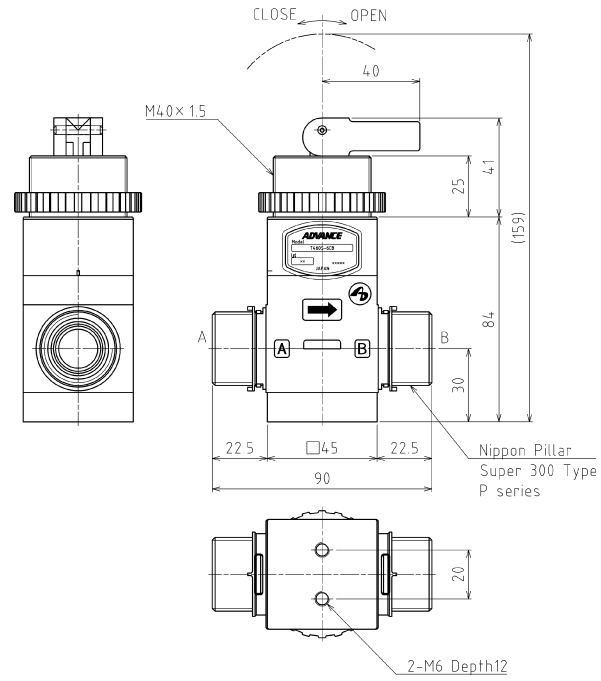

Dimensional Drawing（unit : mm）

T66＊S-＊CB-01

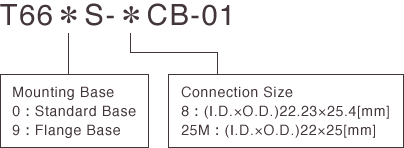

Model Selection Table

T66＊S-＊CB-01

Specifications

Orifice Size [mm] φ22
Connection Size [mm] 22.23×25.4 22×25
Cv 9.6
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure A→B [MPa] 0 ～ 0.5
B→A [MPa] 0 ～ 0.5
Media Temperature [℃] 10 ～ 100
Ambient Temperature [℃] 10 ～ 60
Wetted Material Diaphragm Corrosion-resistant plastic
Valve Body Corrosion-resistant plastic

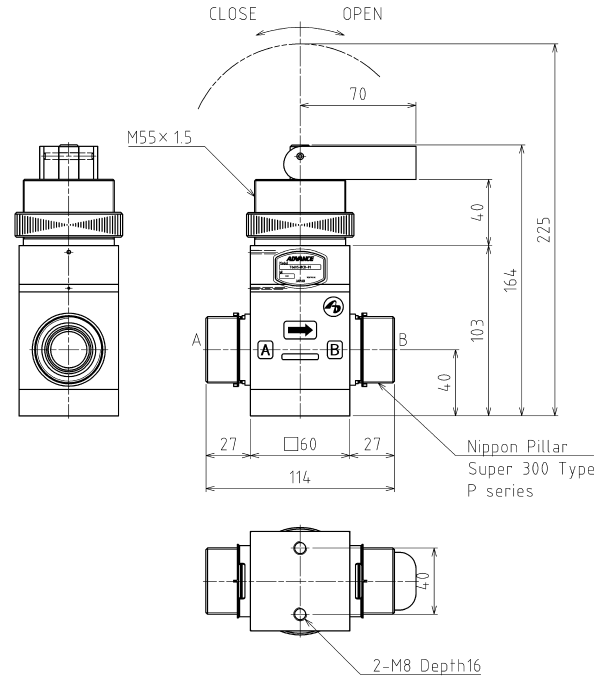

Dimensional Drawing（unit : mm）
