ADVANCE ELECTRIC CO.,INC.

Solenoid Valve AVH series

AVH series comprized of plastic wetted parts
for outstanding chemical resistance.

Solenoid Valve NAVR series
Features
Wetted parts consist of corrosion-resistant plastic
Corrosion-resistant plastic diaphragm
Main Use: For supply of chemical, pure water, etc.
Ideal for medical equipment and various analytical instruments
Specifications
Orifice Size : φ1.2, φ1.6, φ3.0, φ5.0
Operating Voltage : 12V DC, 24V DC, 100V AC and
all others
Media Temperature : 10 to 50℃
Connection Size : M6 (P=1), 1/8 ", 1/4"
Click here for details
AVH-1＊1＊

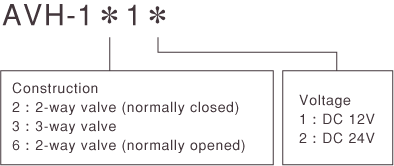

Model Selection Table

AVH-1＊1＊

Specifications

Model AVH-121＊ AVH-161＊ AVH-131＊
Construction 2-way valve (NC type) 2-way valve (NO type) 3-way valve
Orifice φ1.2[mm]
Connection Size M6 P=1.0
Cv 0.04
Media DI water / corrosive fluid
Media Pressure IN:-50～200kPa IN:0～200kPa COM:-50～100kPa
OUT:0～50kPa OUT:0～50kPa NO,NC:0～50kPa
Media Temp 10 to 50℃
Ambient Temp 10 to 50℃
Power Consumption 2.4W
Coil Temp Rise 60℃ or less
Insulation Class B (JIS C 4003)
Wetted Material Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic
Diaphragm:Corrosion-resistant plastic Diaphragm:Corrosion-resistant plastic Diaphragm:Corrosion-resistant plastic
Stem:Sapphire

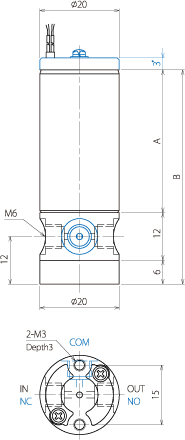

Dimensional Drawing (unit : mm)

Blue indicates dimensions of 3-way valve.
* symbol - also includes dimensions of NO type 2-way valve.

AVH-121＊ AVH-161＊ AVH-131＊

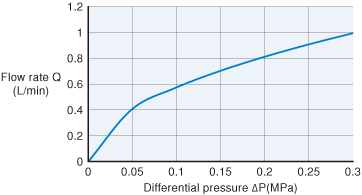

Flow characteristics table

Flow characteristics table Cv: 0.04

AVH-2＊1＊

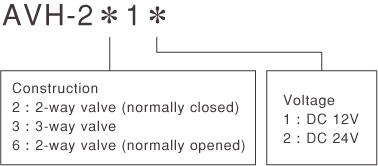

Model Selection Table

AVH-2＊1＊

Specifications

Model AVH-221＊ AVH-261＊ AVH-231＊
Construction 2-way valve (NC type) 2-way valve (NO type) 3-way valve
Orifice φ1.6[mm]
Connection Size M6 P=1.0
Cv 0.05
Media DI water / corrosive fluid
Media Pressure IN:-90～300kPa IN:-50～200kPa COM:-90～100kPa
OUT:0～100kPa OUT:0～50kPa NO,NC:0～100kPa
Media Temp 10 to 50℃
Ambient Temp 10 to 50℃
Power Consumption 3.0W
Coil Temp Rise 60℃ or less
Insulation Class B (JIS C 4003)
Wetted Material Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic
Diaphragm:Corrosion-resistant plastic Diaphragm:Corrosion-resistant plastic Diaphragm:Corrosion-resistant plastic
Stem:Sapphire

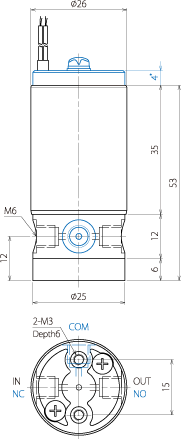

Dimensional Drawing (unit : mm)

Blue indicates dimensions of 3-way valve.
* symbol - also includes dimensions of NO type 2-way valve.

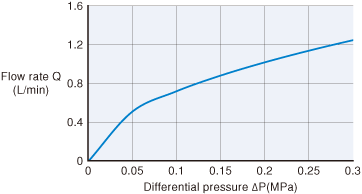

Flow characteristics table

Flow characteristics table Cv: 0.05

AVH-3＊3＊

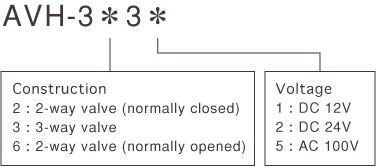

Model Selection Table

AVH-3＊3＊

Specifications

Model AVH-323＊ AVH-363＊ AVH-333＊
Construction 2-way valve (NC type) 2-way valve (NO type) 3-way valve
Orifice φ3.0[mm]
Connection Size Rc1/8
Cv 0.13 0.1
Media DI water / corrosive fluid
Media Pressure IN:-90～300kPa IN:-90～300kPa COM:-90～200kPa
OUT:0～100kPa OUT:0～100kPa NO,NC:0～100kPa
Media Temp 10 to 50℃
Ambient Temp 10 to 50℃
Power Consumption 5.0W
Coil Temp Rise 60℃ or less
Insulation Class B (JIS C 4003)
Wetted Material Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic
Diaphragm:Corrosion-resistant plastic Diaphragm:Corrosion-resistant plastic Diaphragm:Corrosion-resistant plastic
Stem:Sapphire

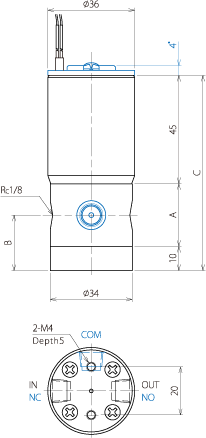

Dimensional Drawing (unit : mm)

Blue indicates dimensions of 3-way valve.
* symbol - also includes dimensions of NO type 2-way valve.

AVH-323＊ AVH-363＊ AVH-333＊

Flow characteristics table

Flow characteristics table Cv: 0.13

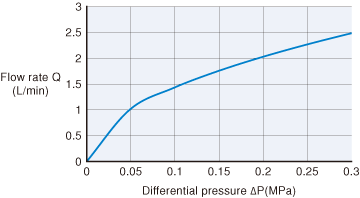

Flow characteristics table Cv: 0.1

AVH-4＊4＊

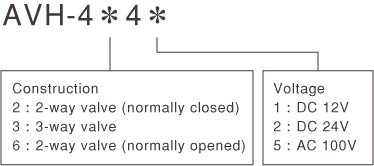

Model Selection Table

AVH-4＊4＊

Specifications

Model AVH-424＊ AVH-464＊ AVH-434＊
Construction 2-way valve (NC type) 2-way valve (NO type) 3-way valve
Orifice φ5.0[mm]
Connection Size Rc1/4
Cv 0.3
Media DI water / corrosive fluid
Media Pressure IN:-90～300kPa IN:-90～300kPa COM:-90～200kPa
OUT:0～100kPa OUT:0～100kPa NO,NC:0～50kPa
Media Temp 10 to 50℃
Ambient Temp 10 to 50℃
Power Consumption 10W
Coil Temp Rise 70℃以下
Insulation Class B (JIS C 4003)
Wetted Material Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic
Diaphragm:Corrosion-resistant plastic Diaphragm:Corrosion-resistant plastic Diaphragm:Corrosion-resistant plastic
Stem:Corrosion-resistant plastic

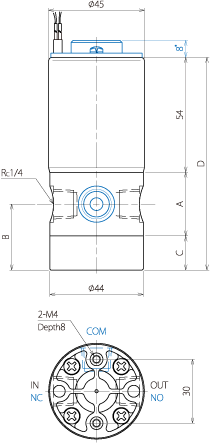

Dimensional Drawing (unit : mm)

Blue indicates dimensions of 3-way valve.
* symbol - also includes dimensions of NO type 2-way valve.

AVH-424＊ AVH-464＊ AVH-434＊

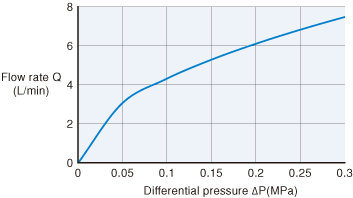

Flow characteristics table

Flow characteristics table Cv: 0.3
