ADVANCE ELECTRIC CO.,INC.

Solenoid Valve AVS series

AVS series comprized of plastic wetted parts
for outstanding chemical resistance.

Solenoid Valve AVS series
Features
Wetted parts consist of corrosion-resistant plastic and elastomer
Corrosion-resistant elastomer diaphragm
Fluorocarbon rubber is used at the valve seat to to achieve excellent sealing.
Main Use: For supply of chemical, pure water, etc.
Ideal for medical equipment and various analytical instruments
Specifications
Orifice Size : φ1.2, φ1.6, φ3.0, φ5.0
Operating Voltage : 12V DC, 24V DC, 100V AC and
all others
Media Temperature : 10 to 50℃
Connection Size : M6 (P=1), 1/8 ", 1/4"
Click here for details
AVS-1＊1＊

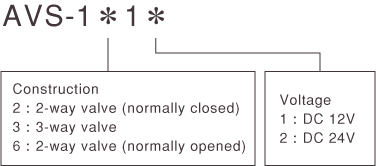

Model Selection Table

AVS-1＊1＊

Specifications

Model AVS-121＊ AVS-161＊ AVS-131＊
Construction 2-way valve (NC type) 2-way valve (NO type) 3-way valve
Orifice φ1.2[mm]
Connection Size M6 P=1.0
Cv 0.04
Media DI water / corrosive fluid
Media Pressure IN:-50～200kPa IN:0～200kPa COM:-50～100kPa
OUT:0～50kPa OUT:0～50kPa NO,NC:0～50kPa
Media Temp 10 to 50℃
Ambient Temp 10 to 50℃
Power Consumption 2.4W
Coil Temp Rise 60℃ or less
Insulation Class B (JIS C 4003)
Wetted Material Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic
Diaphragm:Corrosion-resistant elastomer Diaphragm:Corrosion-resistant elastomer Diaphragm:Corrosion-resistant elastomer
Stem : Corrosion-resistant plastic

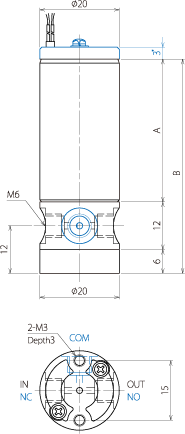

Dimensional Drawing (unit : mm)

Blue indicates dimensions of 3-way valve.
* symbol - also includes dimensions of NO type 2-way valve.

AVS-121＊ AVS-161＊ AVS-131＊

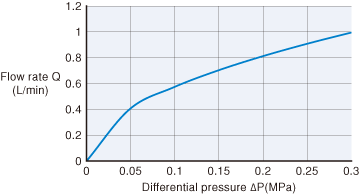

Flow characteristics table

Flow characteristics table Cv:0.04

AVS-2＊1＊

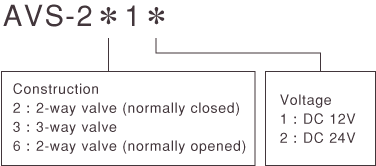

Model Selection Table

AVS-2＊1＊

Specifications

Model AVS-221＊ AVS-261＊ AVS-231＊
Construction 2-way valve (NC type) 2-way valve (NO type) 3-way valve
Orifice φ1.6[mm]
Connection Size M6 P=1.0
Cv 0.05
Media DI water / corrosive fluid
Media Pressure IN:0～200kPa IN:0～200kPa COM:-50～100kPa
OUT:0～50kPa OUT:0～50kPa NO,NC:0～50kPa
Media Temp 10 to 50℃
Ambient Temp 10 to 50℃
Power Consumption 3.0W
Coil Temp Rise 60℃ or less
Insulation Class B (JIS C 4003)
Wetted Material Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic
Diaphragm:Corrosion-resistant elastomer Diaphragm:Corrosion-resistant elastomer Diaphragm:Corrosion-resistant elastomer
Stem : Corrosion-resistant plastic

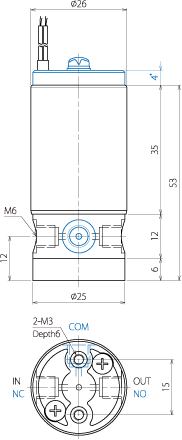

Dimensional Drawing (unit : mm)

Blue indicates dimensions of 3-way valve.
* symbol - also includes dimensions of NO type 2-way valve.

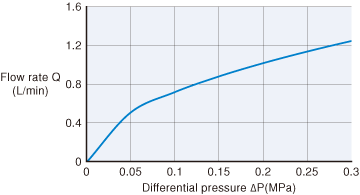

Flow characteristics table

Flow characteristics table Cv:0.05

AVS-3＊3＊

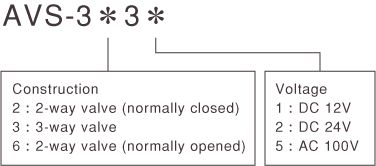

Model Selection Table

AVS-3＊3＊

Specifications

Model AVS-323＊ AVS-363＊ AVS-333＊
Construction 2-way valve (NC type) 2-way valve (NO type) 3-way valve
Orifice φ3.0[mm]
Connection Size Rc1/8
Cv 0.13
Media DI water / corrosive fluid
Media Pressure IN:0～200kPa IN:0～200kPa COM:0～200kPa
OUT:0～50kPa OUT:0～50kPa NO,NC:0～50kPa
Media Temp 10 to 50℃
Ambient Temp 10 to 50℃
Power Consumption 5.0W
Coil Temp Rise 60℃ or less
Insulation Class B (JIS C 4003)
Wetted Material Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic
Diaphragm:Corrosion-resistant elastomer Diaphragm:Corrosion-resistant elastomer Diaphragm:Corrosion-resistant elastomer
Stem : Corrosion-resistant plastic

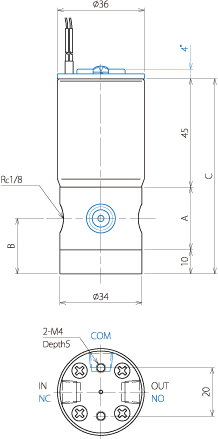

Dimensional Drawing (unit : mm)

Blue indicates dimensions of 3-way valve.
* symbol - also includes dimensions of NO type 2-way valve.

AVS-323＊ AVS-363＊ AVS-333＊

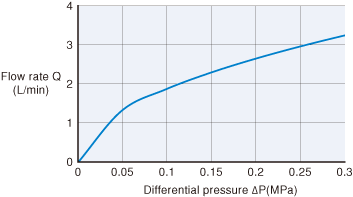

Flow characteristics table

Flow characteristics table Cv:0.13

AVS-4＊4＊

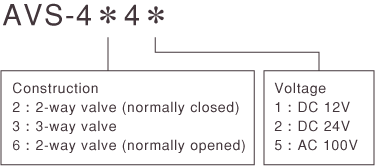

Model Selection Table

AVS-4＊4＊

Specifications

Model AVS-424＊ AVS-464＊ AVS-434＊
Construction 2-way valve (NC type) 2-way valve (NO type) 3-way valve
Orifice φ5.0[mm]
Connection Size Rc1/4
Cv 0.3
Media DI water / corrosive fluid
Media Pressure IN:0～200kPa IN:0～200kPa COM:0～100kPa
OUT:0～50kPa OUT:0～50kPa NO,NC:0～50kPa
Media Temp 10 to 50℃
Ambient Temp 10 to 50℃
Power Consumption 10W
Coil Temp Rise 70℃ or less
Insulation Class B (JIS C 4003)
Wetted Material Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic
Diaphragm:Corrosion-resistant elastomer Diaphragm:Corrosion-resistant elastomer Diaphragm:Corrosion-resistant elastomer
Stem : Corrosion-resistant plastic

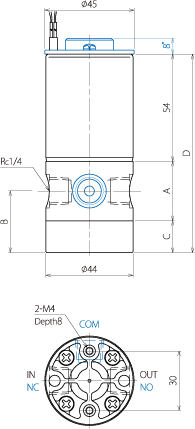

Dimensional Drawing (unit : mm)

Blue indicates dimensions of 3-way valve.
* symbol - also includes dimensions of NO type 2-way valve.

AVS-424＊ AVS-464＊ AVS-434＊

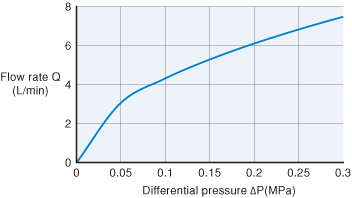

Flow characteristics table

Flow characteristics table Cv:0.3
