ADVANCE ELECTRIC CO.,INC.

Solenoid Valve NAVR series

NAVR series comprized of plastic wetted parts
for outstanding chemical resistance.

Solenoid Valve NAVR series
Features
Wetted parts consist of corrosion-resistant plastic and elastomer
Corrosion-resistant plastic and elastomer diaphragm
Fluorocarbon rubber is used at the valve seat to to achieve excellent sealing.
Main Use: For supply of chemical, pure water, etc.
Ideal for medical equipment and various analytical instruments
Specifications
Orifice Size : φ1.0, φ1.2, φ1.6, φ 3.0, φ 5.0
Operating Voltage : 12V DC, 24V DC, 100V AC and
all others
Media Temperature : 10 to 50℃
Connection Size : M5 (P=0.8), M6 (P=1), 1/8 ", 1/4"
Solenoid Valve NAVR series
Click here for details
NAVR-0＊0＊

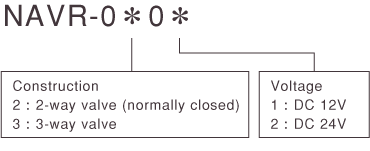

Model Selection Table

NAVR-0＊0＊

Specifications

Model NAVR-020＊ NAVR-030＊
Construction 2-way valve (NC type) 3-way valve
Orifice φ1.0[mm]
Connection Size M5 P=0.8
Cv 0.02 0.014
Media DI water / corrosive fluid
Media Pressure IN:-40～200kPa COM:-40～100kPa
OUT:0～50kPa NO,NC:0～50kPa
Media Temp 10～50℃
Ambient Temp 10～50℃
Power Consumption 2.0W
Coil Temp Rise 50℃ or less
Insulation Class B (JIS C 4003)
Wetted Material Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic
Diaphragm:Corrosion-resistant plastic and elastomer Diaphragm:Corrosion-resistant plastic and elastomer
Sealing Plug:Zirconia Stem:Alumina
Sealing Plug:Zirconia
Base:Corrosion-resistant plastic
Accessories Mounting Bracket

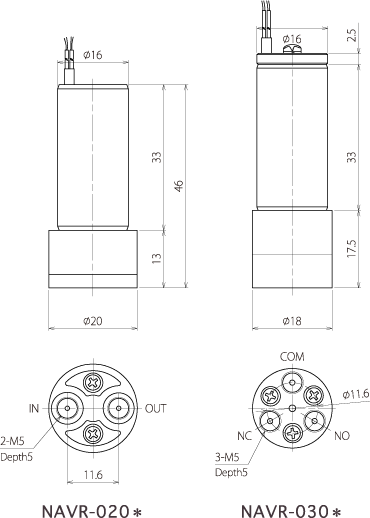

Dimensional Drawing (unit : mm)

NAVR-020＊ NAVR-030＊

Flow characteristics table

Flow characteristics table Cv:0.02

Flow characteristics table Cv:0.014

NAVR-1＊1＊

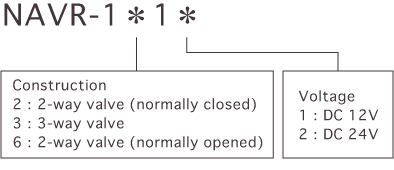

Model Selection Table

NAVR-1＊1＊

Specifications

Model NAVR-121＊ NAVR-161＊ NAVR-131＊
Construction 2-way valve (NC type) 2-way valve (NO type) 3-way valve
Orifice φ1.2[mm]
Connection Size M6 P=1.0
Cv 0.04
Media DI water / corrosive fluid
Media Pressure IN:-50～200kPa IN:0～200kPa COM:-50～100kPa
OUT:0～50kPa OUT:0～50kPa NO,NC:0～50kPa
Media Temp 10～50℃
Ambient Temp 10～50℃
Power Consumption 2.4W
Coil Temp Rise 60℃ or less
Insulation Class B (JIS C 4003)
Wetted Material Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic
Diaphragm:Corrosion-resistant plastic and elastomer Diaphragm:Corrosion-resistant plastic and elastomer Diaphragm:Corrosion-resistant plastic and elastomer
Stem:Sapphire

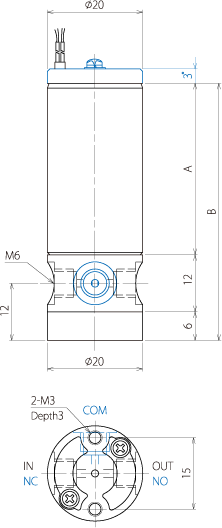

Dimensional Drawing (unit : mm)

Blue indicates dimensions of 3-way valve.
* symbol - also includes dimensions of NO type 2-way valve.

NAVR-121＊ NAVR-161＊ NAVR-131＊

Flow characteristics table

Flow characteristics table Cv:0.04

NAVR-2＊1＊

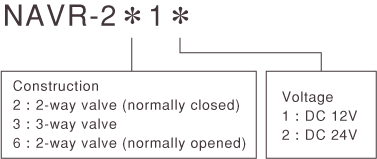

Model Selection Table

NAVR-2＊1＊

Specifications

Model NAVR-221＊ NAVR-261＊ NAVR-231＊
Construction 2-way valve (NC type) 2-way valve (NO type) 3-way valve
Orifice φ1.6[mm]
Connection Size M6 P=1.0
Cv 0.05
Media DI water / corrosive fluid
Media Pressure IN:-90～200kPa IN:-50～200kPa COM:-50～200kPa
OUT:0～50kPa OUT:0～50kPa NO,NC:0～50kPa
Media Temp 10～50℃
Ambient Temp 10～50℃
Power Consumption 3.0W
Coil Temp Rise 60℃ or less
Insulation Class B (JIS C 4003)
Wetted Material Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic
Diaphragm:Corrosion-resistant plastic and elastomer Diaphragm:Corrosion-resistant plastic and elastomer Diaphragm:Corrosion-resistant plastic and elastomer
Stem:Sapphire

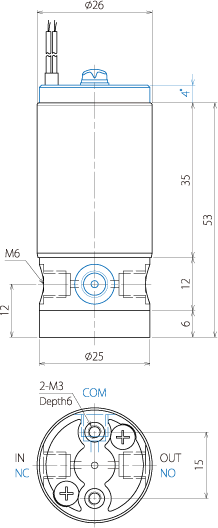

Dimensional Drawing (unit : mm)

Blue indicates dimensions of 3-way valve.
* symbol - also includes dimensions of NO type 2-way valve.

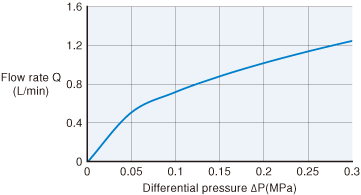

Flow characteristics table

Flow characteristics table Cv:0.05

NAVR-3＊3＊

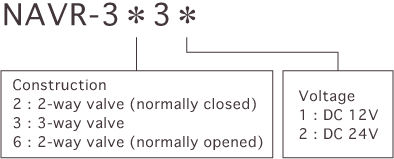

Model Selection Table

NAVR-3＊3＊

Specifications

Model NAVR-323＊ NAVR-363＊ NAVR-333＊
Construction 2-way valve (NC type) 2-way valve (NO type) 3-way valve
Orifice φ3.0[mm]
Connection Size Rc1/8
Cv 0.13
Media DI water / corrosive fluid
Media Pressure IN:-50～200kPa IN:-50～200kPa COM:-50～150kPa
OUT:0～50kPa OUT:0～50kPa NO,NC:0～50kPa
Media Temp 10～50℃
Ambient Temp 10～50℃
Power Consumption 4.0W
Coil Temp Rise 60℃ or less
Insulation Class B (JIS C 4003)
Wetted Material Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic
Diaphragm:Corrosion-resistant plastic and elastomer Diaphragm:Corrosion-resistant plastic and elastomer Diaphragm:Corrosion-resistant plastic and elastomer
Stem:Sapphire

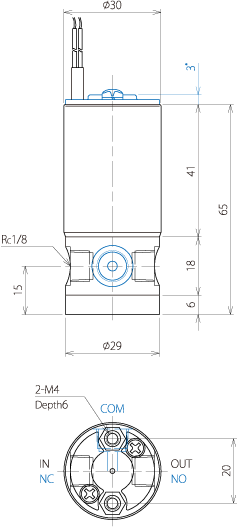

Dimensional Drawing (unit : mm)

Blue indicates dimensions of 3-way valve.
* symbol - also includes dimensions of NO type 2-way valve.

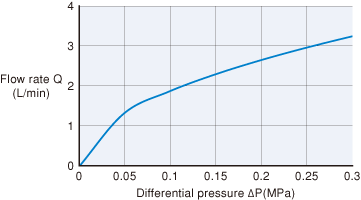

Flow characteristics table

Flow characteristics table Cv:0.13

NAVR-4＊4＊

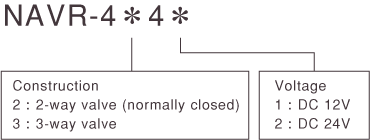

Model Selection Table

NAVR-4＊4＊

Specifications

Model NAVR-424＊ NAVR-434＊
Construction 2-way valve (NC type) 3-way valve
Orifice φ5.0[mm]
Connection Size Rc1/4
Cv 0.3
Media DI water / corrosive fluid
Media Pressure IN:-90～200kPa COM:-90～200kPa
OUT:0～50kPa NO,NC:0～50kPa
Media Temp 10～50℃
Ambient Temp 10～50℃
Power Consumption 7W
Coil Temp Rise 60℃ or less
Insulation Class B (JIS C 4003)
Wetted Material Valve body:Corrosion-resistant plastic Valve body:Corrosion-resistant plastic
Diaphragm:Corrosion-resistant plastic and elastomer Diaphragm:Corrosion-resistant plastic and elastomer
Stem:Corrosion-resistant plastic

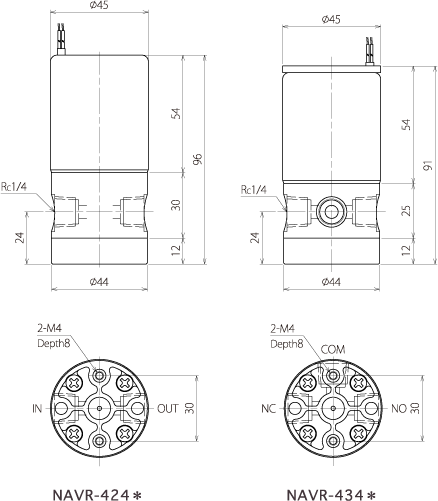

Dimensional Drawing (unit : mm)

NAVR-424＊ NAVR-434＊

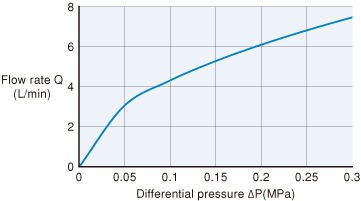

Flow characteristics table

Flow characteristics table Cv:0.3
