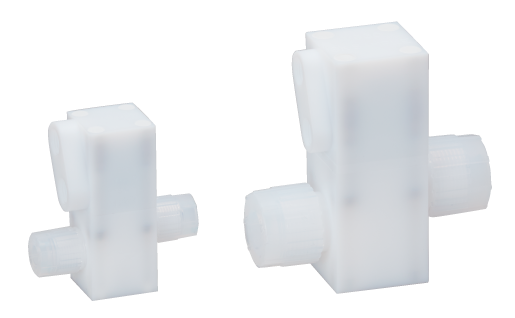

New SAV series high-temp pneumatic shutoff valves.

Driven by a pneumatic actuator (cylinder) the New SAV series
pneumatic valves open and close by air operation.

New SAV series high-temp pneumatic shutoff valves.
Features
Pneumatically actuated
Wetted parts are made of corrosion-resistant plastic
Considering safety by making the body and
actuator from Corrosion-resistant plastic
Manifold configurations available
Main Use: For supply and drain of chemical and DI water
Bidirectional pressure rated (0.3MPa/0.25MPa)
Specifications
Media Pressure : Inlet/Outlet 0.3MPa or 0.25MPa
Media Temperature : 10 to 180℃ / 10 to 200℃
Valve Footprint : □25, □35, □45, □65
Connection Size : 1/4", 3/8", 1/2", 3/4", 1"
Click here for details

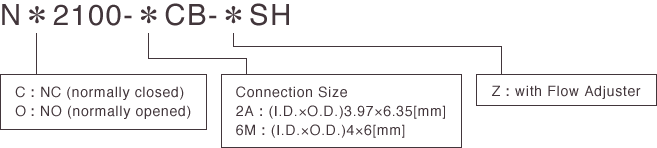

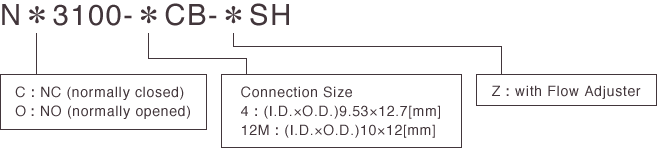

N＊2100-＊CB-＊SH

Model Selection Table

N＊2100-＊CB-＊SH

Specifications

Orifice Size [mm] φ4
Connection Size [mm] 3.95×6.35 4×6
Cv 0.32
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure A→B [MPa] 0～0.3 0～0.25
B→A [MPa] 0～0.3 0～0.25
Media Temperature [℃] 10〜180 10〜200
Ambient Temperature [℃] 10 ～ 80
Pneumatic Pressure 0.38 ～ 0.5
Wetted Material Diaphragm Corrosion-resistant plastic
Valve Body Corrosion-resistant plastic

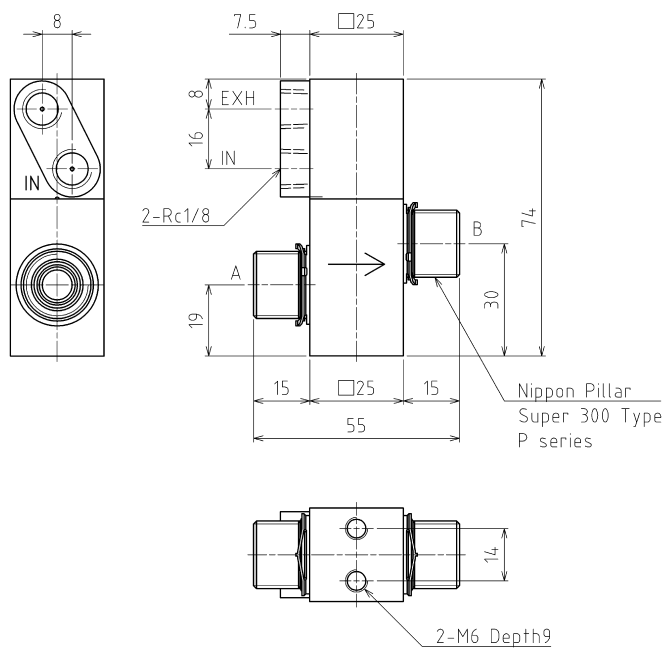

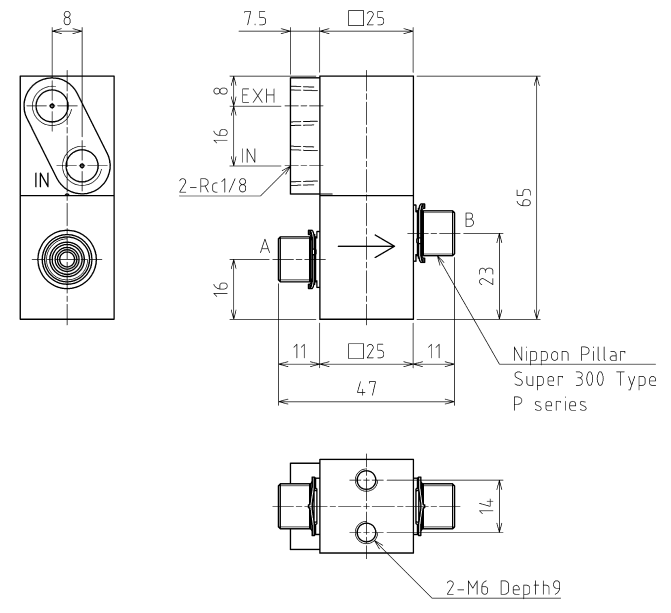

Dimensional Drawing（unit : mm）

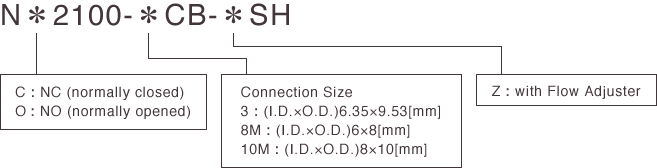

N＊2100-＊CB-＊SH

Model Selection Table

N＊2100-＊CB-＊SH

Specifications

Orifice Size [mm] φ6
Connection Size [mm] 6×8 6.35×9.53 8×10
Cv 0.84 0.86 1.0
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure A→B [MPa]

0～0.3

0～0.25
B→A [MPa]

0～0.3

0～0.25
Media Temperature [℃]

10〜180

10〜200
Ambient Temperature [℃] 10 ～ 80
Pneumatic Pressure 0.38 ～ 0.5
Wetted Material Diaphragm Corrosion-resistant plastic
Valve Body Corrosion-resistant plastic

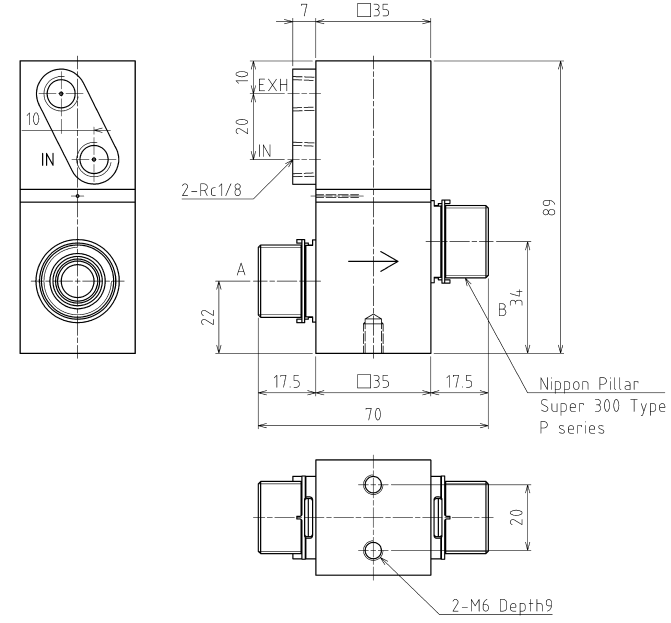

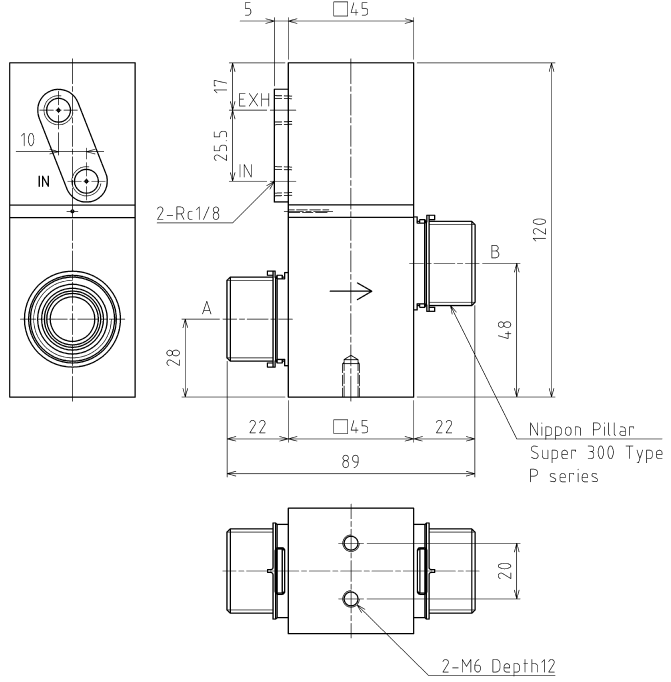

Dimensional Drawing（unit : mm）

N＊3100-＊CB-＊SH

Model Selection Table

N＊3100-＊CB-＊SH

Specifications

Orifice Size [mm] φ10
Connection Size [mm] 9.53×12.7 10×12
Cv 2.0
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure A→B [MPa] 0～0.3 0～0.25
B→A [MPa] 0～0.3 0～0.25
Media Temperature [℃] 10〜180 10〜200
Ambient Temperature [℃] 10 ～ 80
Pneumatic Pressure 0.38 ～ 0.5
Wetted Material Diaphragm Corrosion-resistant plastic
Valve Body Corrosion-resistant plastic

Dimensional Drawing（unit : mm）

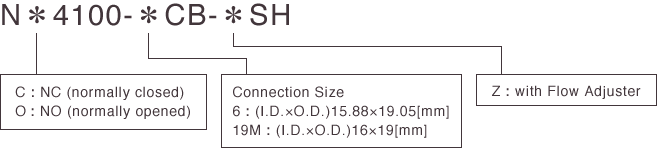

N＊4100-＊CB-＊SH

Model Selection Table

N＊4100-＊CB-＊SH

Specifications

Orifice Size [mm] φ16
Connection Size [mm] 15.88×19.05 16×19
Cv 6.1
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure A→B [MPa] 0～0.3 0～0.25
B→A [MPa] 0～0.3 0～0.25
Media Temperature [℃] 10〜180 10〜200
Ambient Temperature [℃] 10 ～ 80
Pneumatic Pressure 0.38 ～ 0.5
Wetted Material Diaphragm Corrosion-resistant plastic
Valve Body Corrosion-resistant plastic

Dimensional Drawing（unit : mm）

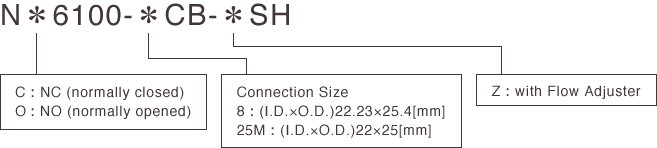

N＊6100-＊CB-＊SH

Model Selection Table

N＊6100-＊CB-＊SH

Specifications

Orifice Size [mm] φ22
Connection Size [mm] 22.23×25.4 22×25
Cv 11.0
Media DI water / Corrosive fluid (Do not use fluids which can attack wetted materials)
Media Pressure A→B [MPa] 0～0.3 0～0.25
B→A [MPa] 0～0.3 0～0.25
Media Temperature [℃] 10〜180 10〜200
Ambient Temperature [℃] 10 ～ 80
Pneumatic Pressure 0.38 ～ 0.5
Wetted Material Diaphragm Corrosion-resistant plastic
Valve Body Corrosion-resistant plastic

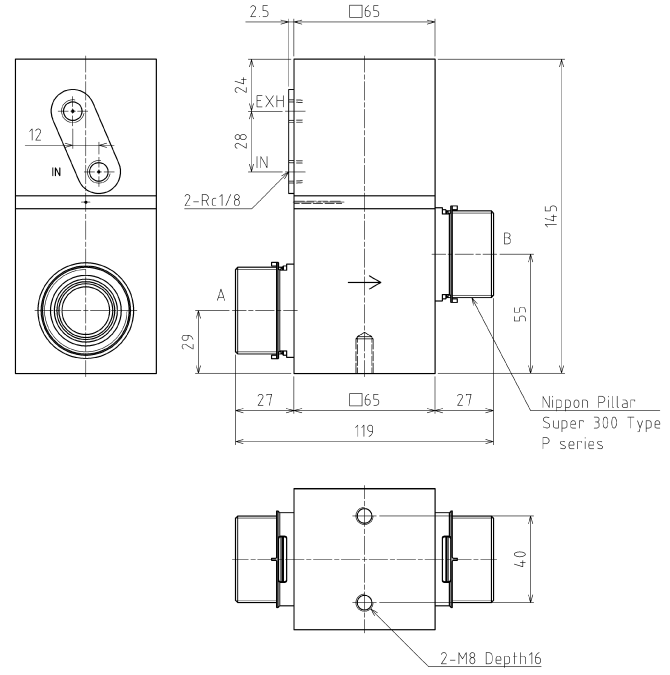

Dimensional Drawing（unit : mm）
